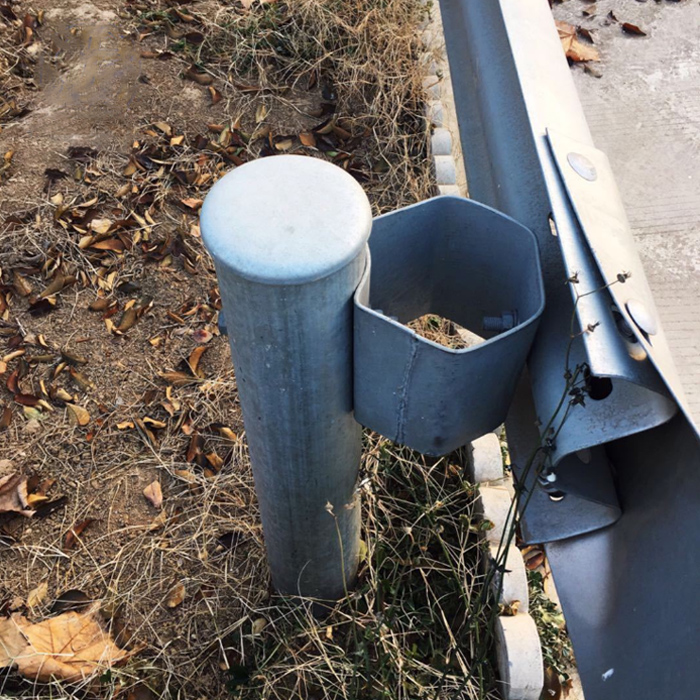

Round Shape Guardrail Post

Home Featured Products Round Shape Guardrail Post

Round Shape Guardrail Post

Material

Q235, Q345 steel and stainless steel

Surface Treatment

Hot Galvanized or Powder Coated.

Galvanized Thickness

550g/m2 (40µ) or 1100 g/m2 (80µ) or

1200 g/m2 (85µ) or as per your request.

Size Available

Φ114*1750

Φ140*1850

Φ140*2250

The thickness

of the steel

3mm/4mm/4.5mm/5mm/6mm/

according to consumers’ request

Certification

ISO9001:2000, ISO14000, SGS, CE
Featured Products, Highway Guardrail, Guardrail Post

Description

Guardrail post, as a holder of highway guardrails, generally determines the barrier’s performance during collisions. The guardrail posts we supply are well designed and made of high quality steel, such as Q235, Q345 and Q255 or depend on your needs. Additionally, it features a long service life due to its anti-rust and corrosion resistant characters, which proceed from its superior zinc coating or PVC coating

According to the place of your intended application, we provide guardrail posts with or without flange plates. Generally, the post without flange plate is mostly fixed to soft soil by post anchors. But if you want to fix it on the concrete road, the post with plate is your best choice for easy installation: Just fasten the post to your desired place with bolts.

Different shapes of guardrail posts we can supply:

Galvanized guardrail post

PVC coated guardrail post.

Guardrail Galvanized Post Detailed Specification

Specification Detailed introduction
Profile C, U, Sigma, H, Flange, Square Tube, Round

Post
Materials Steel Grade Q235 ( S235JR/ASTM A283M),

Steel Grade Q345 (S355JR/ ASTM A529M)
The thickness of

the steel

 3/4/4.5/5/6,according to consumers’

request
Normal Size C:

1800*150*75*25, 1500*100*50*25,

1500*120*55*16, 1700*150*110*18,

1750*120*55*16, 1900*100*55*25
U:

1400/1750/1820*150*75,

1800/1830*176/178*76,

1830*140*75, 1680/2200*120*80,

2000/1820*150*100
Sigma:

1500/1900/1950/2300/2500*100*55
H:

1830*157*82, 1830*157*82,

1800*150*100
I：

100*55*4.1*5.7,120*64*4.4*6.3,

100*68*4.5*7.6
Flange Post:

300*300*10  Diameter:114/140
Square Tube: 130*1750/1850/2250
Round Post:

Φ114*1750, Φ140*1850,Φ140*2250
Surface treatment Hot Dipped Galvanized or Powder Coated.
The thickness of

galvanized

 550g/m2 (80µ),610g/m2 (85µ),1100 g/m2

(160µ), 1200 g/m2 (170µ),

according to consumers’ request
Technique Cold Rolled
Features  High intensity,Great corrosion resistant,

Strong plasticity,Oxidation resistance,Good impact resistance,

Low cost,Long lifehigher security,

Environmental protection, etc.
Certification ISO9001:2000, ISO14000, SGS, CE
Standards  JT/T281-2007,AASHTO M180,EU,USA,

AS/NZS,etc.
Ordering

requirements

 Other special specification as per client’s

requirement or drawings

 Can be applied in the following situtaions:

  1. Road/Expressway/Highway Guardrails.
  2. Roadway guard rails crash barriers;
  3. Roadway crash barriers;
  4. Service roads;Car parking lot guardrails;
  5. Car parking guardrails;
  6. Warehouses;
  7. Distribution depots;
  8. Industrial barriers;
  9. Pedestrian areas;
  10. Bridge guardrail.

Available with many various popular Standards:

  1. AASHTO-M180 (Corrugated Sheet Steel Beams For Highway Guardrail – USA)
  2. AS/NZS 3845:1999(Road Safety Barrier Systems – Australia/New Zealand)
  3. BS EN-1317(Road Restraint Systems – Europe)
  4. JT/T 281-1995(Corrugated Sheet Steel Beams For Expressway Guardrail – China)
  5. Or tailor-make according to client’s requirements
